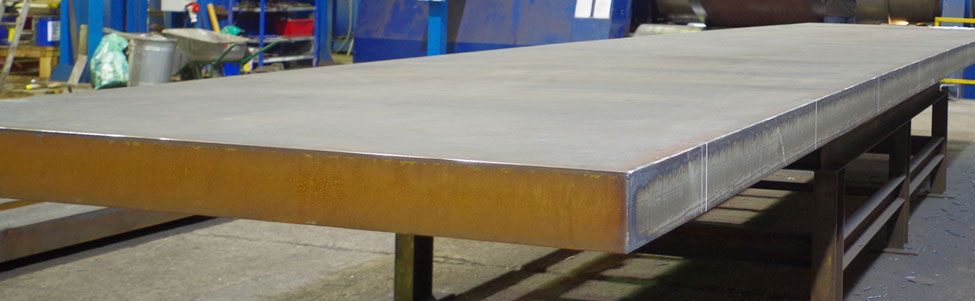

Alloy Steel Plate Supplier In India

Alloy Steel Plate Suppliers, Alloy Steel Plate Suppliers In Chennai, Alloy Steel Plate Supplier In India, Alloy Steel Sheet Manufacturers In India, 4140 Alloy Steel Plate Suppliers, Alloy Steel Plate Supplier, Alloy Steel Plate Manufacturers In India

ASTM A387 F 5, F 9, F 11, F 12, F 22, F 91 Alloy Steel Plates, Sheets & Coils Manufacturer, Exporter & Suppliers. Alloy Steel Shim Sheet, Alloy Steel Chequered Plate, Alloy Steel Coils, Circles Suppliers in India..

Specification :

Standard	:	ASTM / ASME A/SA 387
Range	:	5 mm To 200 mm thick in 1000 mm TO 2500 mm width & 2500 mm to 12500 mm Length
		EN-19 Plates, AISI 4140 Plate, SAE 4140 Alloy Steel Plates
Grade	:	F 5, F 9, F 11, F 12, F 22, F 91
HSS in Grade	:	M2, M3, M35, M42 Etc.
Form	:	Foils, Shim Sheet, Rolls, Perforated Sheet, Chequered Plate.
Finish	:	2B, 2D, HR,CR, BA NO(8), SATIN (Met with Plastic Coated), Hot rolled plate (HR) Cold rolled sheet (CR)
Specialize	:	Shim Sheet, Perforated Sheet, B. Q. Profile.
Other Services	:	Heat Treatment, Anneling, Pickling, Polish, Electroplating, Anodising, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.

EN-19 Plates, AISI 4140 Plate, SAE 4140 Alloy Steel Plates Exporters, Suppliers and Stockists in India.

SAE 4140 Plates Specification :

Thickness : 6-800mm
Width : 200-2000mm
Length : 2000-6000mm

Technical Specifications of Alloy Steel Plates:

Specification	Chemical Max									Mechanical MPA, min
	C Max	Min Max	Si Max	S Max	P Max	Cr Max	Mo Max	Ni Max	Cu Max	Tensile	Yield	% EL		Bend
												50     GL	50 GL
ASTM A 387
Gr 11 - CI 2	0.17	0.40 0.65	0.50 0.80	0.04	0.035	1.0 1.50	0.45 0.65	-	-	515 690	310	22	18	-
Gr 12 - Cl 2	0.17	0.40 0.65	0.15 0.40	0.04	0.035	0.80 1.15	0.45 0.60	-	-	450 585	275	22	19	-
EN-19	0.35 0.45%	0.50 0.80%	0.10 0.35%	-	0.20 0.40%	0.90 1.50%	- 0.05	-	-	- -	-	-	-	-
Gr 5 - Cl 2	0.15	0.30 0.60	0.50	0.035	0.035	4.0 6.0	0.45 0.65	-	-	515 690	310	18	-	-
Gr 22 - Cl 2	0.15	0.30 0.60	0.50	0.035	0.035	2.0 2.5	0.90 1.10	-	-	515 690	310	18	-	-
ASTM A 204 Gr-B	0.20	0.90	0.15 0.40	0.04	0.035	-	0.45 0.60	-	-	485 620	275	21	17	2T
16 Mo3	0.12 0.20	0.40 0.90	0.35	0.025	0.030	0.30	0.25 0.35	0.30	-	440 590	275	24	-	Impact : +20C / 3



Alloy Steel Plates ASTM A387 Mechanical Properties:

		Tensile Strength (ksi)	Tensile Strength (MPa)	Yield Strength (ksi)	Yield Strength (MPa)	Elongation in 2 inches (%)
A 387 Grade 5	Class 1	60-85	415-585	30	205	18
	Class 2	75-100	515-690	45	310	18
A 387 Grade 9	Class 1	60-85	415-585	30	205	18
	Class 2	75-100	515-690	45	310	18
A 387 Grade 11	Class 1	60-85	415-585	35	240	22
	Class 2	70-90	485-620	45	310	22
A 387 Grade 12	Class 1	50-80	380-550	33	230	22
	Class 2	65-85	450-585	40	275	22
A 387 Grade 22	Class 1	60-85	415-585	30	205	18
	Class 2	75-100	515-690	45	310	18

Alloy Steel Plates ASTM A387 Chemical Composition:

	C	Mn	P	S	SI	Cr	Mo
Grade 5	0.15 max	0.3 – 0.6	0.035	0.03	0.5 max	4.00 – 6.00	0.45 – 0.65
Grade 9	0.15 max	0.30 – 0.6	0.03	0.03	1.0 max	8.0 – 10.0	0.9 – 1.1
Grade 11	0.05 – 0.17	0.4 – 0.65	0.035	0.035	0.5 – 0.80	1.0 – 1.5	0.45 – 0.65
Grade 12	0.05 – 0.17	0.4 – 0.65	0.035	0.035	0.15 – 0.4	0.8 – 1.15	0.45 – 0.6
Grade 22	0.05 – 0.15	0.3 – 0.6	0.035	0.035	0.5 max	2.0 – 2.5	0.9 – 1.1

Comparable Alloy Steel Plate Specifications, Pipe Specifications and Forging Specifications:

Plate Grade	Forging/Flange Grade A182	Pipes Grade ASTM A335
BSEN10028-2 16M03	F1	P1
ASTM A387-12-2	F12-2	P12
ASTM A387-11-2	F11-2	P11
ASTM A387-22-2	F22	P22
ASTM A387-5-2	F5	P5
ASTM A387-91-2	F9	P91

Types of Alloy Steel Plates, Sheets & Coils :

•   Alloy Steel Circles Stockist •   Alloy Steel Flat Dealers •   Alloy Steel Blank Suppliers •   Alloy Steel Coils Distributors •   Alloy Steel Strips Stockist •   Alloy Steel Profile Dealers •   Alloy Steel Foils Distributors

•   Alloy Steel Plates Suppliers •   Alloy Steel Sheets Dealers •   Alloy Steel Perforated Sheet •   Alloy Steel Chequered Plate •   Alloy Steel Shim Sheet Stockist •   Alloy Steel Rolls Suppliers •   Alloy Steel Ring Dealers



Alloy Steel Plate Suppliers, Alloy Steel Plate Suppliers In Chennai, Alloy Steel Plate Supplier In India, Alloy Steel Sheet Manufacturers In India, 4140 Alloy Steel Plate Suppliers, Alloy Steel Plate Supplier, Alloy Steel Plate Manufacturers In India

ASTM A387 F 5, F 9, F 11, F 12, F 22, F 91 Alloy Steel Plates, Sheets & Coils Manufacturer, Exporter & Suppliers. Alloy Steel Plate Suppliers, Alloy Steel Plate Suppliers In Chennai, Alloy Steel Plate Supplier In India, Alloy Steel Plates Suppliers In Mumbai, Alloy Steel Plate Manufacturers In India, 4140 Alloy Steel Plate Suppliers, 4140 Steel Plate Suppliers, 4140 Alloy Steel Plate, Alloy Steel Shim Sheet, Alloy Steel Chequered Plate, Alloy Steel Coils, Circles Suppliers in India.



Please note that we are the largest and specialist stockists of Alloys Steel Pipes, Tubes and Alloy Steel Plates in India.
ALL PIPES, TUBES & PLATES ARE AVAILABLE WITH ORIGINAL MILL TEST CERTIFICATE & IBR CERTIFICATE
